Bertha Stencil Depositor
With the rotating stencil depositor Bertha™, you can effortlessly handle a variety of masses, including meringue, sponge dough, butter dough, and chocolate. Designed on a C-frame with wheels, Bertha™ ensures fast servicing and easy cleaning.
Explore the Aasted Bertha™ Stencil Depositor
Take the Bertha™ for a 360° spin

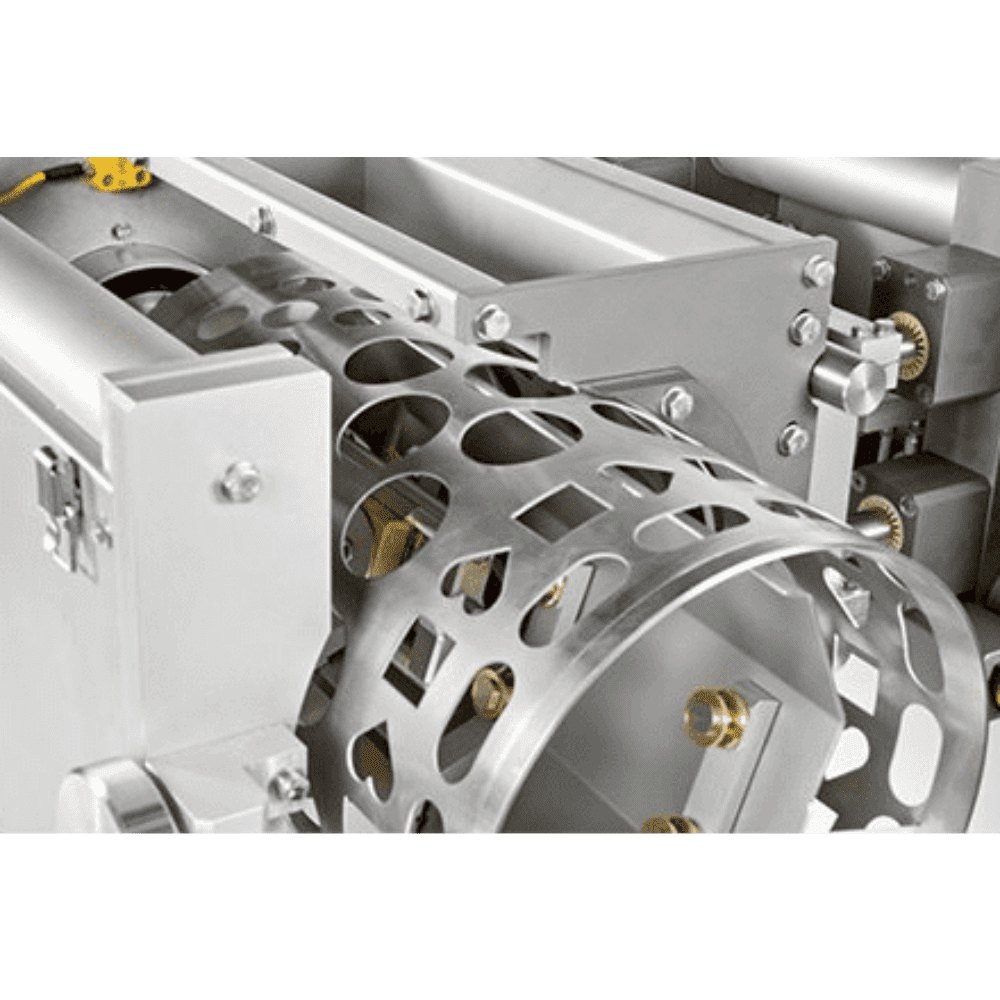

The high-precision stencil drum guarantees a reliable forming process, while the internal scraper delivers a precise and uniform cut.

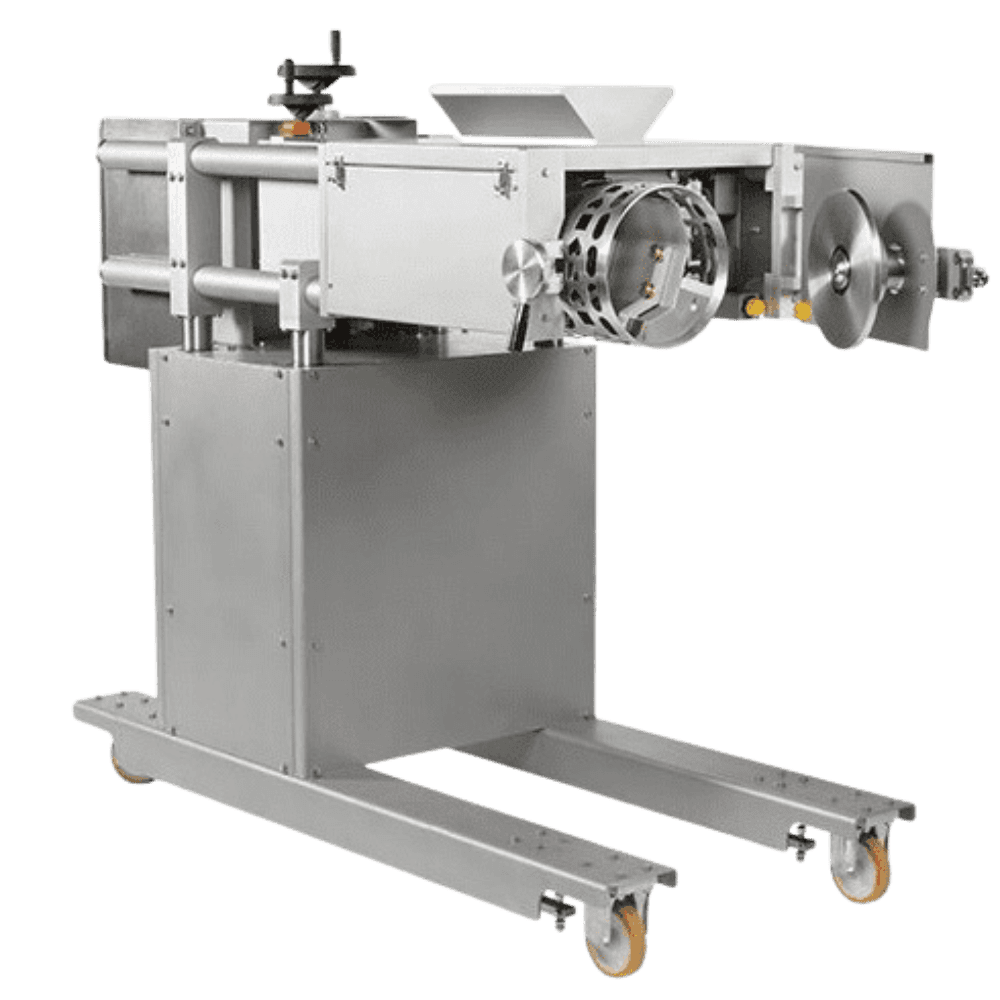

Equipped with a PLC and HMI, Bertha™ is user-friendly and offers remote access for convenient operation.
Bertha™ rotating stencil depositor: Effortless precision and flexibility
The mass is placed in the hopper of the Bertha™ machine. As the stencil drum rotates, the mass is forced into the center of the drum. An internal scraper then presses the mass through the drum’s cutouts onto the conveyor belt, creating a product pattern that mirrors the stencil design.
Specifications
| Belt width | 450 mm |
| Belt height | 950 mm |
| Belt length | 1500 mm |
| Depositor length | 1740mm |
| Depositor width | 1580 mm |
| Depositor height | 1620 mm |
| Total length with shaking table | 3170 mm |
| Net weight depositor | 879 kg |
| Power supply | 3×380-420V, 50-60Hz + PE or according to agreement |
| Installed power | 6,5kW |
| PLC type | Allen Bradley PLC and touch screen |
| Pneumatic air | 6 bar |
Installation and getting started
Get started with minimal downtime
Get started with minimal downtime by choosing Aasted’s efficient solutions. Our advanced technology and expert support ensure your production runs smoothly from day one.
Ensuring quality with rigorous testing
We always test equipment before shipping to guarantee optimal performance and reliability for your production.
Seamless integration into your existing line
Our solutions are designed for easy integration, enhancing your current production setup without disruption.
